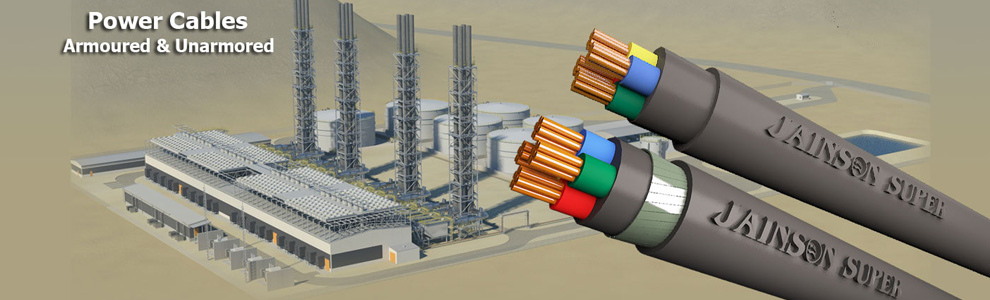

JAINSON SUPER - Armoured & Unarmoured
JAINSON SUPER provides armoured & unarmoured cables as per requirement of customer.
Parameters:
• Voltage Grade : 650 / 1100 Volts.
• Number of Cores : Single, Two, Three, Three & Half, Four And Multi Core Cables.
• Conductor Material : Electrolytic grade of COPPER / ALUMINUM
• Type of Insulation : PVC, XLPE , POLYETHYLENE.
• Type of Inner Sheath : PVC Wrapped / PVC Extruded
• Type of Armored : Strip Armored / Wire Armored / Tape Armored
• Type of Outer Sheath : PVC / Flame retardant / Flame retardant Low Smoke / Zero Halogen
• Length of cable as per customer's requirement in drum length.
Armoured / Unaramoured Copper Cables (Current Rating)
Area Sq. mm | Twin Core Amp. | 3,3½, 4 Core Amp. |
---|---|---|
1.5 | 20 | 17 |
2.5 | 27 | 24 |
4.0 | 35 | 30 |
6.0 | 45 | 39 |
10.0 | 60 | 52 |
16.0 | 88 | 66 |
25.0 | 105 | 90 |
35.0 | 125 | 110 |
50.0 | 155 | 135 |
70.0 | 195 | 165 |
95.0 | 230 | 200 |
120.0 | 265 | 235 |
150.0 | 305 | 265 |
185.0 | 350 | 305 |
240.0 | 410 | 355 |
300.0 | 465 | 400 |
400.0 | 530 | 455 |
*The number and diameter of conductor strands are for reference only.
"LISSOM" Cables will not responsible for any damages arising out of incorrect application of its products.
The Above data is Indicative and may be revised without prior Information
