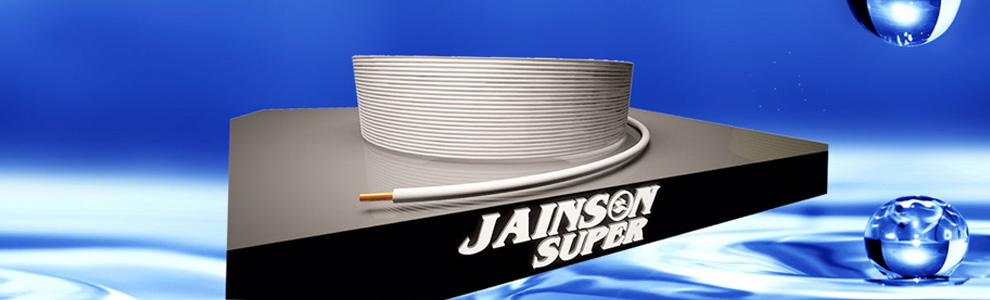

JAINSON SUPER - Winding Wires

These winding wires have very thin insulation thickness which makes them useful in smaller submersible pumps such as V4 pumps. The old pumps are to be rewound the stator slots get smaller and they require thinner winding wires.

"JAINSON SUPER" Super winding wires manufactured from bright-annealed 99.97% pure bare copper conductors these wires have low conductor resistance and hence high flux capacity. The thin insulation thickness is achieved through precision extrusion of specially developed and manufactured polymeric compound. Each coil is put through quality checks and water immersion test for trouble free marathon performance.

Technical Table - Winding Wires

Nom. Conductor  Diameter* (mm.)	Nom. Cross sectional area (sq. mm)	Min. Insulation Thickness (mm.)	Approx. Overall Diameter. (mm.)	Max Conductor Resistance at 20o C (Ohms/km)
0.60	0.283	0.25	1.15	62.20
0.70	0.385	0.30	1.35	45.70
0.80	0.502	0.30	1.45	35.00
0.90	0.638	0.30	1.55	27.60
1.00	0.785	0.30	1.65	22.40
1.10	0.950	0.30	1.75	18.50
1.20	1.13	0.30	1.85	15.50
1.30	1.33	0.30	1.95	13.20
1.40	1.54	0.35	2.15	11.40
1.50	1.77	0.35	2.25	9.95
1.60	2.01	0.35	2.35	8.75
1.70	2.27	0.35	2.45	7.75
1.80	2.54	0.35	2.55	6.91
1.90	2.84	0.35	2.65	6.20
2.00	3.14	0.45	2.95	5.60
2.10	3.46	0.45	3.05	5.08
2.20	3.80	0.45	3.15	4.63
2.30	4.15	0.45	3.25	4.23
2.40	4.52	0.50	3.45	3.89
2.50	4.91	0.50	3.55	3.58
2.60	5.31	0.50	3.65	3.31
2.70	5.73	0.50	3.75	3.07
2.80	6.19	0.55	3.95	2.86
3.00	7.07	0.55	4.15	2.49

*The number and diameter of conductor strands are for reference only.

"LISSOM" Cables will not responsible for any damages arising out of incorrect application of its products.

The Above data is Indicative and may be revised without prior Information
