LISSOM - Submersible Flat, pump Cables

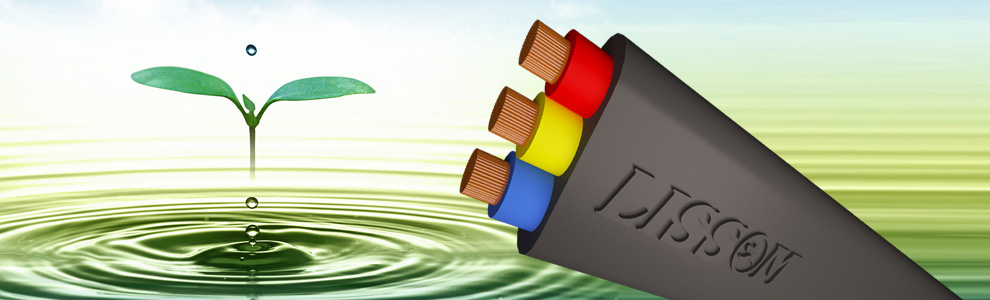

LISSOM 3, 4 core flat, pump cables are produced from electrolytic copper & conductor are insulated with a special PVC compound outer sheath consist of highly abrasion resistant PVC compound impervious to grease, oil and water etc. Standard length cable packing: Coils 100, 500, 1000m. and as per customer's requirements. LISSOM PVC Flat cables are ideal for Irrigation pumps, Drinking water supply pumps,Offshore Drilling rings and Sawage.
Technical Table :
Conductor | Insulation | Sheath | Conductor Resistance @ 20° C (max.) Ohms/km | Current Carrying Capacity @ 40° C Amps | ||
Area (Nom.) Sq. mm | No/dia. Of strands mm | Thickness (Nom.) mm | Overall dimensions | |||
Thickness (Nom.) mm | Size (approx.) (W x T) mm | |||||
1.5 | 22/0.3 | 0.8 | 1.1 | 11.6x5.5 | 12.1 | 14 |
2.5 | 36/0.3 | 0.9 | 1.2 | 13.9x6.4 | 7.41 | 18 |
4 | 56/0.3 | 1 | 1.3 | 16.1x7.1 | 4.95 | 26 |
6 | 84/0.3 | 1.1 | 1.4 | 18.6x8.0 | 3.3 | 31 |
10 | 140/0.3 | 1.3 | 1.6 | 23.4x10.0 | 1.91 | 42 |
16 | 224/0.3 | 1.4 | 1.8 | 27.0x11.4 | 1.21 | 57 |
25 | 350/0.3 | 2 | 2.2 | 35.4x15.0 | 0.78 | 72 |
35 | 490/0.3 | 2.1 | 2.2 | 39.3x16.3 | 0.554 | 90 |
50 | 700/0.3 | 2.2 | 2.4 | 45.7x18.5 | 0.386 | 121 |
*The number and diameter of conductor strands are for reference only.
"LISSOM" Cables will not responsible for any damages arising out of incorrect application of its products.
The Above data is Indicative and may be revised without prior Information
LISSOM - XLPE - Submersible Flat Cables
LISSOM XLPE insulated and PVC sheathed , 4 core flat pump cables are used for giving electrical connection to the submersible pump motors. These cables have overcome the limitations of PVC Insulated Cables such as thermal degradation, poor moisture resistant and thermoplastic in nature.
This cable has many advantages like Higher current rating, higher Short Circuit Rating, Thermosetting in nature, High insulation resistance, High resistance to moisture and Comparatively higher cable operation temperature 90°C and short circuit temperature 250°C. It is also ideal for commercial use because of Lower laying cost and Lower installation charges .
Technical Table - "LISSOM" XLPE Flat Cable as per IS : 694/1990 (650/1100 V)
Size (Sq. mm) | Conductor Construction (No./mm) | Conductor resistance at 20° C (Ω/km) Max. | Insulation Thicknes Nom. (mm) | Sheath Thickness Nom. (mm) | Overal Dimensions (mm) Approx. | Current carrying Capacity (Amps) | |
Width (W) | height (H) | ||||||
2.5 | 36/0.3 | 7.410 | 0.7 | 1.0 | 12.7 | 6.0 | 22 |
6.0 | 84/0.3 | 3.300 | 0.7 | 1.1 | 16.9 | 7.4 | 31 |
10.0 | 140/0.3 | 1.910 | 0.7 | 1.2 | 20.3 | 9.1 | 37 |
16.0 | 224/0.3 | 1.210 | 0.7 | 1.3 | 23.8 | 10.4 | 50 |
25.0 | 350/0.3 | 0.780 | 0.9 | 1.5 | 29.6 | 12.9 | 68 |
35.0 | 490/0.3 | 0.554 | 0.9 | 1.6 | 33.6 | 14.4 | 108 |
*The number and diameter of conductor strands are for reference only.
"LISSOM" Cables will not responsible for any damages arising out of incorrect application of its products.
The Above data is Indicative and may be revised without prior Information
