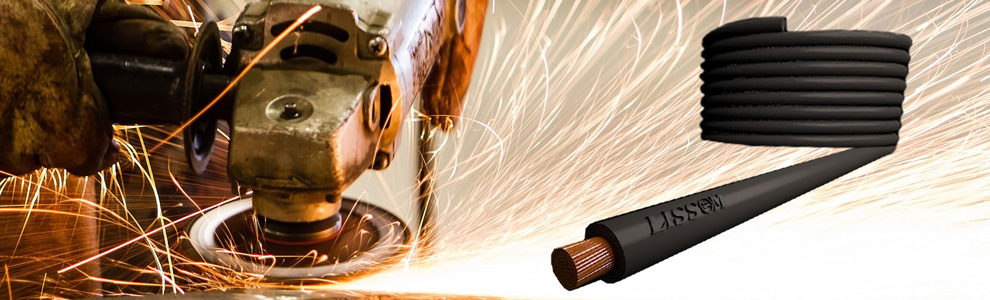

LISSOM - Welding Cable


LISSOM is manufactuing welding cables from EC Grade flexible / Annealed tinned Copper (ATC) or Annealed Bare Copper (ABC) with insulation of NBR / EPR Rubber . It is used for Low Voltage leads for connection to automatic or hand held metal, arc welding, electrodes and for earthling return leads, the transmission of high currents from the electric welding machine to the welding tool. This cables are available in Black , Gray , Yellow , Orange , Blue colors.


Technical Table - "LISSOM" Welding Cable

Copper Conductor

No. of Area in Sq.mm

Nominal Thickness of sheath
mm

Min./Max. Overall Diameter
mm

Max. Conductor resistance at 20°
mm OHM / KM

1 X 10

2.0

7.8/10

1.91

1 X 16

2.0

9/11.5

1.21

1 X 25

2.0

10/13

0.78

1 X 35

2.0

11.5/14.5

0.554

1 X 50

2.20

13/17

0.386

1 X 70

2.40

15/19

0.272

1 X 95

2.60

17.5/21.5

0.206

1 X 120

2.80

19.5/24

0.161

1 X 150

3.0

21.5/26

0.129

1 X 185

3.20

23/29

0.106

1 X 240

3.40

27/32

0.0801

1 X 300

3.60

30/35

0.0641

1 X 400

3.80

33/39

0.0486


*The number and diameter of conductor strands are for reference only.

"LISSOM" Cables will not responsible for any damages arising out of incorrect application of its products.

The Above data is Indicative and may be revised without prior Information
